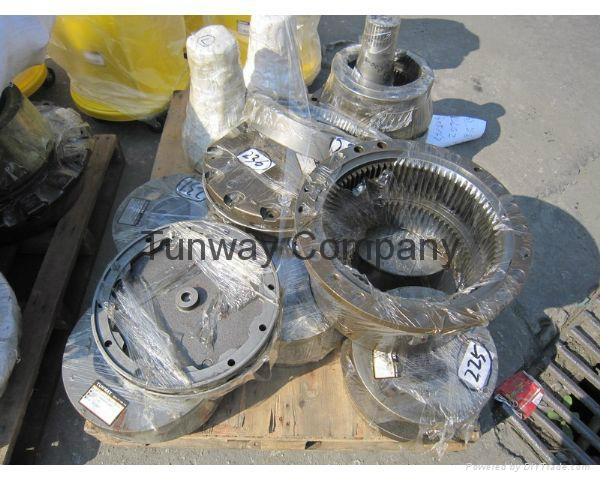

Hyundai R210 reduction ring gear

Item Part_No IS Description Qty
* XKAH-00112   .REDUCTION GEAR 1
* XKAH-00312 .REDUCTION GEAR 1
* XKAH-00452   .REDUCTION GEAR 1
* XKAH-00312 .REDUCTION GEAR 1
1 XKAH-00001   ..HUB 1
1 XKAH-00311 ..HUB 1
1 XKAH-00451   ..HUB 1
1 XKAH-00311 ..HUB 1
*-1 XKAH-00002   ..SPINDLE KIT 1
*-11 XKAH-00003 ...SPINDLE ASSY 1
N2 XKAH-00004   ....SPINDLE 1
N3 XKAH-00005 ....HOLDER-FLANGE 1
N19 XKAH-00006   ...BOLT-SOCKET 3
N34 XKAH-00007 ...PIN-PARALLEL 6
N37 XKAH-00008   ...WASHER-PLAIN 3
*-2 XKAH-00371 ..RV GEAR ASSY 1
*-21 XKAH-00010   ...RV GEAR KIT 1
N4 XKAH-00011 ....RV GEAR-A 1
N5 XKAH-00012   ....RV GEAR-B 1
N9 XKAH-00013 ...SHAFT-CRANK 3
N12 XKAH-00014   ...SPACER 6
N22 XKAH-00015 ...BEARING-T/ROLLER 6
N23 XKAH-00016   ...BEARING-NEEDLE 6
6 XKAH-00017 ..INPUT GEAR 1
*-3 XKAH-00018   ..GEAR-SPUR KIT 1
7 XKAH-00019 ...GEAR-SPUR 3
8 XKAH-00020   ..COVER 1
13 ..PIECE-DISTANCE 3
####### XKAH-00850   ...PIECE(3.75-3.80T) AR
####### XKAH-00851 ...PIECE(3.80-3.85T) AR
####### XKAH-00852   ...PIECE(3.85-3.90T) AR
####### XKAH-00853 ...PIECE(3.90-3.95T) AR
####### XKAH-00854   ...PIECE(3.95-4.00T) AR
15 XKAH-00022 ..COUPLING 1
17 XKAH-00023   ..PIN 24
20 XKAH-00024 ..RING-SNAP 3
21 XKAH-00025   ..BEARING-BALL 2
25 XKAH-00026 ..RING-SNAP 3
K27 XKAH-00027   ..O-RING 2
K29 XKAH-00028 ..O-RING 1
K30 XKAH-00029   ..O-RING 1
*-4 XKAH-00372 ..FLOATING SEAL KIT 1
KN31 XKAH-00031   ...SEAL-FLOATING 2
33 XKAH-00032 ..PLUG-RO 3
35 XKAH-00110   ..BOLT-SOCKET 12
36 XKAH-00033 ..BALL-STEEL 1
42 XKAH-00034   ..PIN-PARALLEL 2
K43 XKAH-00035 ..O-RING 3

K XKAH-00111 SEAL KIT 1
